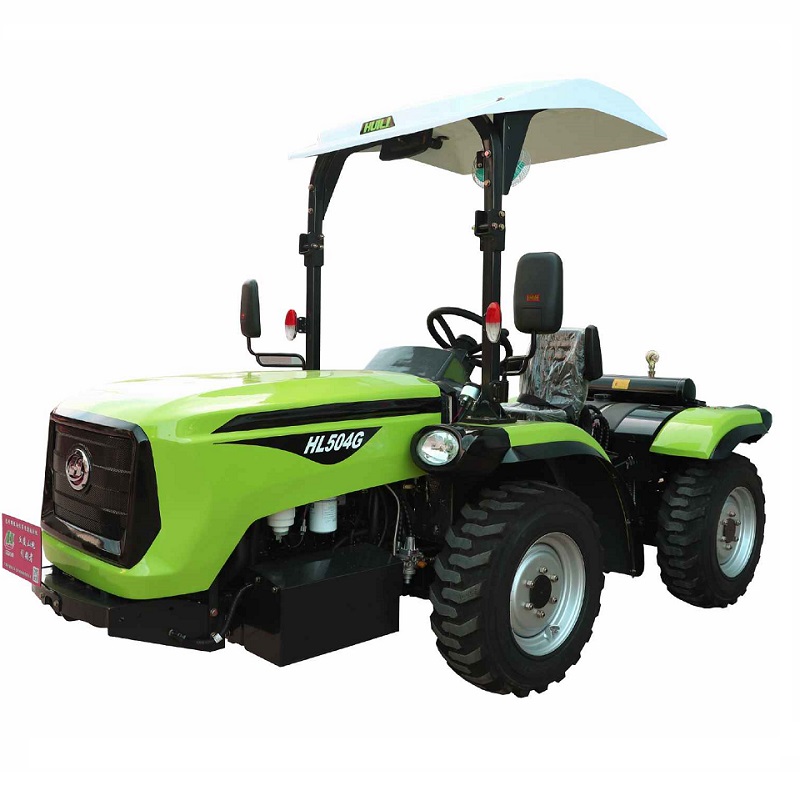

50HP hilly mountain wheel tractor
50HP hilly mountain wheel tractor
Product Description
50hp farm tractor is a cutting-edge, multi-purpose tractor designed for hilly and mountainous terrain. With a modular design, the steep slope tractor combines a main power module, functional module, and attachment module for quick and flexible operation.
50hp farm tractor features
• Modular Design: 50hp farm tractor offers variable wheelbase, adjustable ground clearance, and wheel-track switching for versatility.
• Advanced Technologies: farm tractor 50 hp features include axle wheel speed reduction, articulated steering, and differential locks for superior performance.
• Versatility: Capable of both forward and reverse driving, enhancing its utility on steep slopes.
| ITEM | PER | PARAMETERS | ||
| CODE | / | HLA504 | ||
| Whole machine | Overall size（L×W×H and part） | mm | 4075×1655×2480（TO the top of cab） | |
| Type of driving | / | Four-wheeled drive | ||
| Wheelbase | mm | 1600 | ||
| Min. Using mass | kg | 2680 | ||
| Min.turning radius | mm | 3050 | ||
| Min.ground clearance and part | mm | 330（Bottom of rear axle） | ||
| Power module | Engine | The rated power | kW/HP | 36.8/50 |
| The rated speed | r/min | 2200 | ||
| Transmission | Gearbox（forward/back） | / | 8/8 | |
| The rated speed range（forward/back） | km/h | 2.14～39.56/1.90～34.95 | ||
| Steering | Type of steering | / | Articulated steering | |
| Traveling | Front wheel track | mm | 1340 | |
| Tires/Numbers（front） | / | 12.5/80-18/（2） | ||
| Max. Climbing slope | % | 36.4（≈20°） | ||
| Functional module | Traveling and Braking | Tires/numbers（Rear） | pic | 12.5/80-18/（2） |
| Rear wheel track | mm | 1340 | ||
| Walking brake system | / | Closed air brake | ||
| Parking brake system | / | Air brake | ||
| Working device | Hydraulic output | / | 1 set or 2sets | |
| PTO output spline | / | 8-38×32×6 | ||
| The rated speed of PTO | r/min | 540/720/1000（Single or dual） | ||
