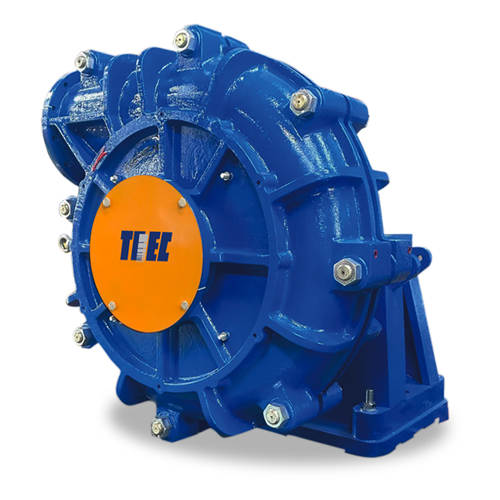

Heavy Duty Slurry Pump - WX(R) / WXA(R)

INDUX® Pump Features

Single stage, single suction, overhang shaft, centrifugal, double casing horizontal INDUX® pump

Material:

Casing are made of ductile Iron, ribs help casing to withstand higher pressures.

Wet Ends - Impellers, liners, volutes are made of high-chrome alloy or rubber or polyurethane, to resist wear, corrosion or impact, parts made of metal or rubber are interchangeable.

Shaft sleeve: Ceramic, tungsten carbide or other hard material are optional for coating, to increase wear resistance.

Bearing Assembly- Grease Lubrication and oil lubrication are optional depend on the usage.

Seal options - Gland Seal, expeller( centrifugal or dynamic) seal and mechanical seal are optional to fit different application  Parts design:

Multiple impeller types are available for diverse applications to achieve optimal performance, including high efficiency, high efficiency with lower NPSHr, large particle handling, enhanced performance, flow reduction, and recessed eye options.

Liners - Different types to match different impellers.

WX(R) & WXA(R) hard metal/rubber heavy duty INDUX® slurry pumps are designed for the most difficult pumping applications for highly abrasive , high density or corrosive slurries. Extra thick sections at the critical wear points and superior Impeller structure ensures improved performance with extended wear and minimised maintenance, thus improving cost of ownership.

Rubber lined INDUX® pumps expand applications to chemical products handling, several different rubber options are available to meet different application requirements.Best fitted in aggressive applications, like mill discharge and tailing transfer

WXA(R) INDUX® pumps are improved version of WX(R) pumps, in that it has an adjustable wear plate seated in at the Throatbush. This can be adjusted while the INDUX® pump is running.

Advantages of Heavy Duty Slurry Pump:

Excellent wear resistance: Made of special alloys, hard metals or high-strength wear-resistant materials, it can effectively resist the wear caused by solid particles and is suitable for extreme working conditions.

Excellent corrosion resistance: The selection of corrosion-resistant materials and coating technology ensures that the pump performs well when handling acidic, alkaline or other corrosive media and prolongs its service life.

Powerful structural design: The heavy-duty construction and optimized design reduce the wear of internal components, while improving the overall stability and reliability of the pump, and adapting to the needs of long-term continuous operation.

Efficient sealing system: Equipped with high-quality double mechanical seal system and other sealing technologies to prevent leakage and protect key components from damage, ensuring safe and reliable operation.

Easy to maintain: The design takes maintenance convenience into consideration, and important components are easy to access and replace, which reduces maintenance time and cost and improves equipment availability.

Wide range of applications: Suitable for mining, metallurgy, chemical industry, power and other industries, and performs well in handling liquids containing a large amount of solid particles or highly corrosive liquids.

Reduced total cost of ownership: By improving the durability of the pump and reducing the frequency of maintenance, the long-term operating cost is reduced, and due to its high performance, Slurry Pump helps to improve overall production efficiency.

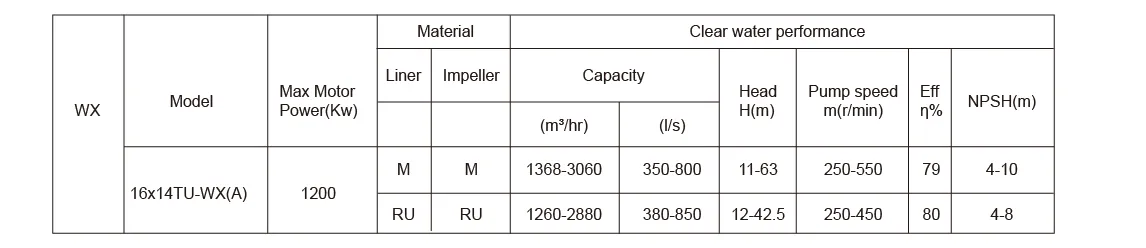

CLEAR WATER PERFORMANCE:
