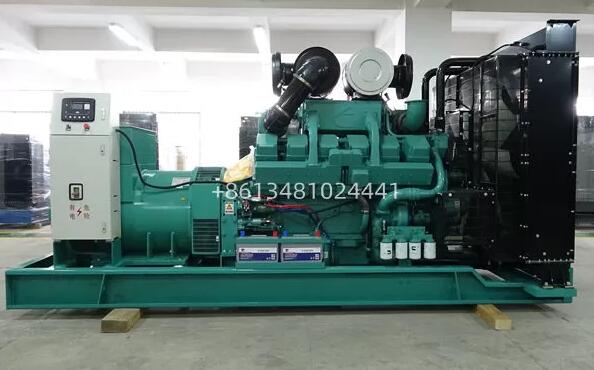

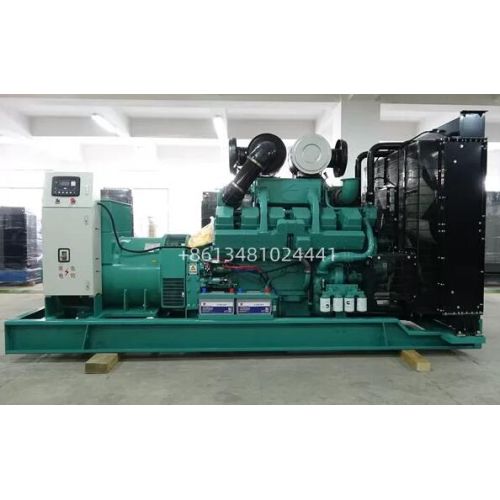

800KW 1000KVA CUMMINS DIESEL GENERATOR SET
800KW 1000KVA CUMMINS DIESEL GENERATOR SET
Product Description
Diesel Generator Set Data
Set Type: DB-800GF
Engine: CCEC Cummins KTA38-G2A
Prime Power: 800KW/1000KVA
Rated Current: 1440(A)
Rated Frequency: 50(Hz)
Start-up time: 5～6(s)
Power Factor: 0.8(Lag)
Rated Voltage: 400/230(V)
Buy a KTA38-G2A Diesel Generator with a power rating of 800 kW & 1000 kVA from Cummins.
For more types, please contact us
Standard Features
1. Engine: CCEC Cummins KTA38-G2A
2. Radiator 50℃ max
3. Fans are driven by belt, with safety guard
4. 24V charge alternator
5. Dry type air filter, fuel filter, oil filter
6. Alternator: single bearing alternator
7. IP23, insulation class H/H
8. Main line circuit breaker
9. Standard control panel
10. Absorber
11. Muffler
12. User manual
800KW 1000KVA CUMMINS DIESEL GENERATOR SET
| Diesel Engine Data | ||
| Manufacturer: | CCEC Cummins | |
| Model: | KTA38-G2A | |
| Prime Power: | 880KW | |
| Rated Speed: | 1500（r/min） | |
| Cycle: | 4 stroke | |
| Cylinder Arrangement: | 12 V-type | |
| Displacement: | 38L | |
| Bore and Stroke: | 159*159（mm） | |
| Compression Ratio: | 14.5:1 | |
| Governor Type: | Electronic | |
| Start battery voltage: | 24V DC | |
| Air Intake System | ||
| Air Intake System: | Turbocharged , Aftercooled | |
| Intake Air Alarm Temperature: | 82℃ | |
| Maximum Allowable Intake Air Restriction With Heavy Duty Air Cleaner | 3.73kPa | |
| Exhaust System | ||
| Exhaust Gas Flow: | 5845L/s | |
| Exhaust Temperature CRM: | 945℃ | |
| Max Back Pressure: | 10kPa | |
| Fuel System | ||
| Fuel System: | Cummins PT | |
| 100%( Prime Power) Load: | 203g/kwh | |
| 75%( Prime Power) Load: | 209g/kwh | |
| 50%( Prime Power) Load: | 199g/kwh | |
| 25%( Prime Power) Load: | 158g/kwh | |
| Oil System | ||
| Total Oil Capacity: | 170.3L | |
| Oil Consumption: | ≤0.24L/h | |
| Oil Pan Capacity (Option OP6024) | High: 151.4L | |
| Maximum Allowable Oil Temperature | 121℃ | |
| Oil Flow at Rated Speed | 469.4kPa | |
| Cooling System | ||
| Cooling Way: | Water-cooled | |
| Total Coolant Capacity: | 112L | |
| Thermostat: | 82-93℃ | |
| Max Water Temperature: | 104℃ | |
| Alternator Data | ||
| Manufacturer: | LEROY SOMER/STAMFORD/SIEMENS/MARATHON/ENGGA | |
| Excitation Mode: | Brushless and self- exciting | |
| Number of phase and Access Act: | 3-phase 4-wire | |
| Connecting Type: | "Y" type connecting | |
| Alternator Capacity: | 1000KVA | |
| Alternator Efficiencies: | 95％ | |
| Overload: | （PRP）110% load can run 1h | |
| Protection Level: | IP22-IP23 | |
| Insulation Class, Temperature Rise: | H/H | |
| Telephone Influence Factor (TIF): | ＜50 | |
| THF: | ＜2% | |
| Voltage Regulation, Steady State: | ≤±1% | |
| Air Cooling Flow: | 1.035m3/s | |
| Altitude: | ≤1000m | |
| Genset Electrical Performance | ||
| Voltage Regulation: | ≥±5% | |
| Voltage Regulation, Stead State: | ≤±1% | |
| Sudden Voltage Warp (100% Sudden Reduce): | ≤+25% | |
| Sudden Voltage Warp (Sudden Increase): | ≤-20% | |
| Voltage Stable Time (100% Sudden Reduce): | ≤6S | |
| Voltage Stable Time (Sudden Increase): | ≤6S | |
| Frequency Regulation, Stead State: | ≤5% | |
| Frequency Waving: | ≤1.5% | |
| Sudden Frequency Warp (100% SuddenReduce): | ≤+12% | |
| Sudden Frequency Warp (Sudden Increase): | ≤-10% | |
| FrequencyRecoveryTime(100%SuddenReduce): | ≤5S | |
| FrequencyRecoveryTime(Sudden Increase): | ≤5S | |
|
Options |
||||||
|
Engine |
Alternator |
|||||
|
Heater 2KW & 4KW |
Anti Condensation Heater |
|||||
|
Battery Charger 3.5A & 7A |
Permanent Magnet Generator（PMG） |
|||||
|
Water Separator |
Drop CT（For Paralleling） |
|||||
|
Daily Fuel Tank |
||||||
|
Fuel Level Sensor |
||||||
|
Control System |
Others |
|||||
|
Remote Control Panel |
Rainproof Type |
|||||
|
Auto Transfer Switch (ATS) |
Soundproof Type |
|||||
|
Paralleling System |
Trailer Type |
|||||
|
Open Type |
||||||
|
Overall Size |
Weight |
|||||
|
4500(mm)*1900(mm)*2450(mm) |
8000(kg) |
|||||
