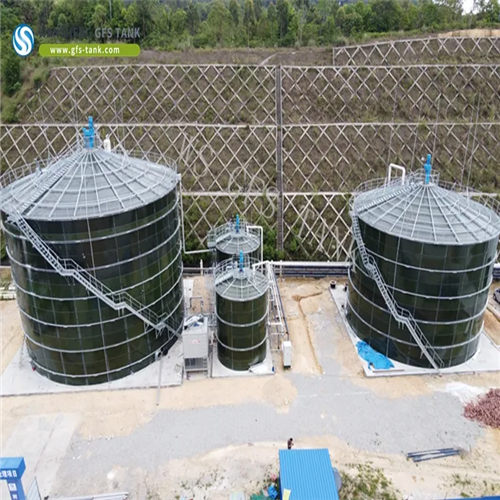

Glass Fused Steel Tank Bolted Steel Tank
GLASS FUSED TO STEEL TANK is assembled on-site from special enamel steel plates, stirrups, self-locking bolts, sealants and other accessories. The raw material of the steel plate is a titanium-containing enamel hot-rolled plate developed in cooperation with domestic first-tier steel companies
Product Description
GLASS FUSED TO STEEL TANK is assembled on-site from special enamel steel plates, stirrups, self-locking bolts, sealants and other accessories. The raw material of the steel plate is a titanium-containing enamel hot-rolled plate developed in cooperation with domestic first-tier steel companies, which is formed using fast and low-cost on-site assembly technology.
After the enameled steel plate is fired at a high temperature of 820°-930°, the enamel will fuse with the surface of the steel plate to form a strong and chemically inert inorganic coating with excellent corrosion resistance.
The enamel process is currently the most advanced coating anti-corrosion technology in the steel storage tank market.
Short construction period, cost-effective tank solution
Superior corrosion resistance, service life is more than 30 years
Easy to install, no need for big installation equipment and/or very skilled labor, the quality is highly guaranteed.
Tank volume can be easily expanded or can be dismantled, removed , and relocated
Elegant appearance, tank color can be customized
Perfectly suited for almost all climates with weather extremes.
Glass Fused To Steel Tank Specs
| Item | Specs |
| Coating color | Standard color: dark blue\dark green\ white or customized |
| A standard steel plate size | effective size 2400mm x 1200 mm |
| Steel plates thickness | 3-12mm, depending on the diameter & height |
| Coating thickness | 0.25-0.40mm |
| Acid and alkali resistance | standard coating: PH3 - PH11\ special coating: PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | around 500KN/mm(same as steel sheet) |
| Hardness | 6.0 Mohs |
| Service life | ≥30 years |
| Holiday test | >1500 V |
| Permeability | Gas and liquid impermeable |
| cleaning | easy to clean, smooth, inert, glossy, anti-stick |
| Corrosion resistance | excellent for waster water, concentrated salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
