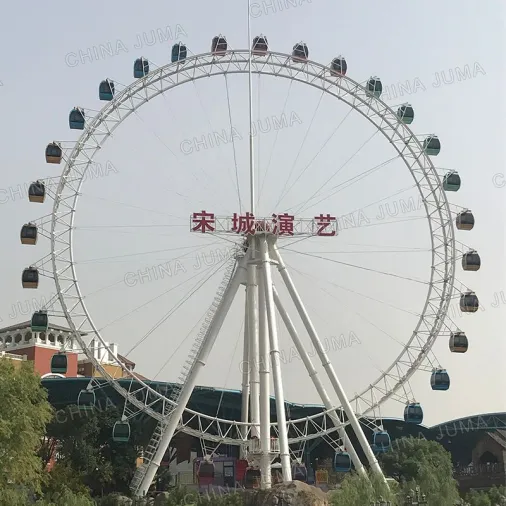

China Hangzhou 49m Spoke Ferris Wheel 32 Gondolas

Installed in Hangzhou Paradise Park, with rotary diameter of 45m and total height of 49m, the Ferris wheel has a total of 32 square aluminium alloy gondolas all able of accommodating up to 4 persons.

Product Description

Installed in Hangzhou Paradise Park, with rotary diameter of 45m and total height of 49m, the Ferris wheel has a total of 32 square aluminium alloy gondolas all able of accommodating up to 4 persons.

https://youtu.be/3G_FY6VuBHI

Main Technical Parameters:

Construction	Single side four columns, Spoke-type runner, 4-person square aluminium alloy hang type gondolas
Total Height	49m
Rotary Diameter	45m
Running Speed	0.22m/s
Running One Circle	11 min
Number of Gondolas	32 sets
Rated Passengers	32×4person/set＝128 persons
Driving Mode	Mechanical friction wheel
Driving Power	17.6kw
Floor Area	28m×33m
Gondola	Square aluminium alloy hang type, including air conditioner, fire extinguisher, ordinary seats, hand operated opening and closing door etc.

Hangzhou 49m Spoke Ferris Wheel 32 Gondolas
