flange adapter

Product Description





https://www.slrfoundry.com/flange-adaptor/universal-flange-adaptor.html

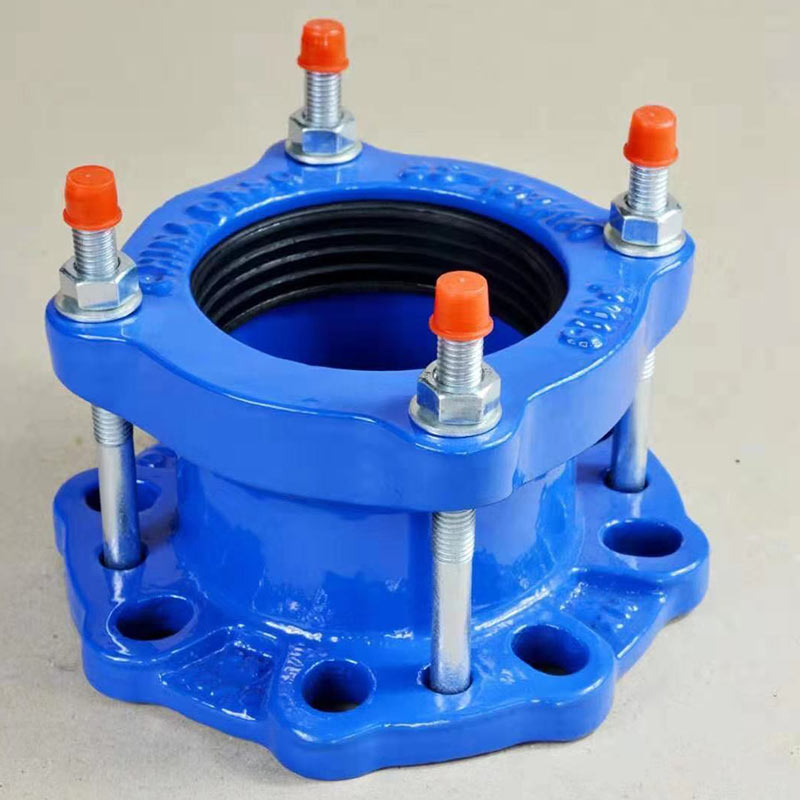

Universal Flange Adaptor

Universal Flange Adaptor: DI body, with EPDM gasket and carbon steel 4.8 grade bolts and nuts. Flange drilling as per EN1092-2 PN10/16. Fusion-bonded epoxy coating min 250 micron.

Universal Flange Adaptor Description:

The Universal Flange Adaptor has a Ductile Iron (DI) body, which provides strength and durability. It is designed to connect pipes with different flange drilling patterns. The flange drilling conforms to the EN1092-2 standard with PN10/16 pressure ratings, ensuring compatibility with a wide range of piping systems.



The flange adaptor is equipped with an EPDM gasket ensure a reliable and leak-proof connection. Fasten the flange adapter to the pipe using high quality carbon steel grade 4.8 bolts and nuts. The 4.8 grade indicates the strength and tensile capabilities of the bolts and nuts, ensuring a secure and long-lasting connection.



To protect the flange adaptor from corrosion and external elements, it features a fusion-bonded epoxy coating. This coating has a minimum thickness of 250 microns, providing robust protection and extending the life of the flange adaptor.



Design Features:

Ductile Iron is a widely used material for fixtures that offer sturdiness, safety and quality.



Wide tolerance fittings are perfect for connecting pipes of different sizes and materials, repairs, pressure testing and more.
