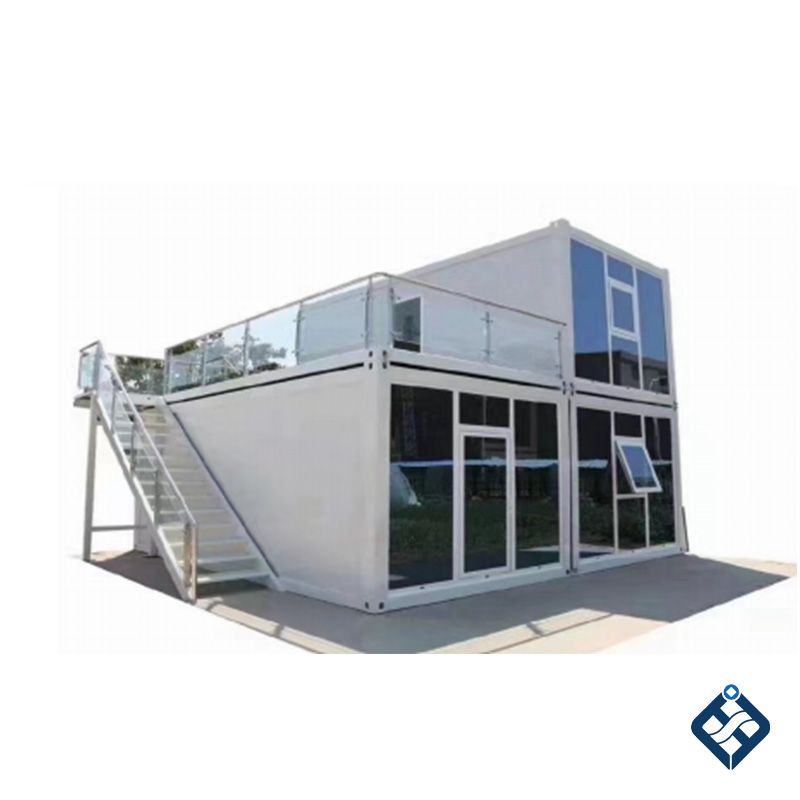

EXTENDED CONTAINER HOUSE

Jiaqiang container house is a welded structure with galvanized steel structure, which can be prefabbed in the factory and assembled on site;

Jiaqiang box house has a seismic resistance of 8 levels and a wind resistance of 10 levels;

Living in Jiaqiang Expandable container house, you will feel bright, breathable. The wall is well soundproof, and has a good heat insulation effect;

There is no construction waste during the installation process;

It can be stacked up to 3 floors and there is no limitation to add the rooms up transversely;

It is easy to install, easy to disassemble and there will be no construction waste left while installation or disasssembly;

The construction cycle is shortened by 80% compared to traditional buildings, the construction labor is saved by 70%, the coagulation loss is reduced by 98%, the construction water is reduced by 70%, and the comprehensive energy saving exceeds 50%;

Jiaqiang box house is movable and reusable. The room unit structure is a standard component welded with special shaped steel, and the boxes are connected by bolts.

Jiaqiang Extended Container House Default Design
1	External Dimensions	Length	5900mm (19'4'')
2		Width	6300mm (20'8'')
3		Height	2480mm (8'2'')
4	Indoor Dimensions	Length	5640mm (18'6'')
5		Width	6140mm (20'2'')
6		Height	2240mm (7'4'')
7	Stack	Maximum Layers	≤3 layers
8		Horizontal Expansion	Unlimited
9	Main Frame	Steel Column	galvanized coil extruded steel (SGH340), 448mm*150mm*210mm, t=2.5mm
10		Roof Main Beams	galvanized coil extruded steel (SGH340), 465mm*180mm, t=2.5mm
11		Roof Secondary Beams	galvanized strip extruded steel (Q235B), C175mm, t=1.5mm
12		Bottom Main Beams	galvanized coil extruded steel (SGH340), 415mm*160mm, t=2.5mm
13		Ground Sub-beam	galvanized strip extruded steel (Q235B), C206mm, t=1.5mm
14		Surface Rreatment	electrostatic powder coating
15	Roof	Roof Panel	galvanized color-coated roll, 360Degree of bite, white gray, t=0.4mm
16		Thermal Insulation	glass wool, flame retardant A-class, test weight ≥14kg/m³, t=75mm
17		Ceiling Panel	galvanized color-coated roll-forming, 193 sealed shadowless ceiling, white gray, t=0.4mm
18	Ground	Decorative Surface	white and gray multi-layer composite PVC floor, flame retardant B₁-class, t=1.6mm
19		Substrate+Waterproof Film	cement board, density ≥1.2g/m³, flame retardant A-class, t=18mm
20	Wall	Color Coated Plate	1150S, double-sided 0.32mm, with orange peel texture on the outside and flat inside, Jinghua galvanized aluminum color-coated plate
21		Thermal Insulation	flame retardant glass wool, test weight ≥55kg/m³, flame retardant A-class, t=50mm
22	Door	Specification	W925mm*H1970mm
23		Material	steel door
24	Window	Specification	W1120mm*H1100mm, equipped with screens and security bars
25		Material	ordinary sliding window with insulation transparent glass
26	Electricity	Voltage	220V~250V, 50Hz, 3rd class, 32A
27		Wire	main power cord=6mm², air conditioning line=4mm², socket cord=2.5mm², lighting switch wire=1.5mm²
28		Power supply	aviation industry plug, 220V, 3 cores, 32A
29		Breaker	high breaking miniature circuit breaker, equipped with leakage switch
30		Lighting	36W LED fluorescent lamp, 2 sets
31		Switches & Sockets	1 set of 10A single switch,  2 sets of 10A five-hole socket, 1 set of 16A three-hole Delixi air conditioning socket
32	Water	Water Supply	Φ25 PPR tube
33		Drainage	Φ50 UPVC tube*2/Φ110 UPVC tube*2
34	Decorate	Package	galvalume color coated coil bending parts, t=0.5, color: Jinghua White
35		Structural Glue	neutral silicone weather-resistant glue (good elasticity, fast curing, high strength, good corrosion resistance)
36	Others	MOQ	6 sets
		Port	Tianjin Port or customer specified
		Supply Capability	6000 sets/month
		Payment	100% payment before shipping by T/T
