16mm 4 Core SWA Cable
16mm 4 Core SWA Cable
Product Description
The 16mm 4 Core SWA Cable, also known as Steel Wire Armoured Cable, is a robust and durable cable consisting of a Black PVC Sheath, XLPE insulation, copper conductors, and steel wire armouring. It is specifically designed for underground installations, power networks, and various other external and internal applications.
The 16mm 4 Core SWA Cable offers several advantages. Firstly, its construction allows for direct burial, making it convenient for installation without the need for additional protective measures. The steel wire armour provides added strength, enabling the cable to withstand higher pulling loads during installation.
Additionally, the XLPE insulation used in the cable offers excellent resistance to various fluids and chemicals. It also exhibits good heat stability, ensuring reliable performance even in demanding environments.
Overall, the 16mm 4 Core SWA Cable is a reliable and versatile option for mains electricity, suitable for a range of applications such as underground installations, power networks, and residential connections. Its hard-wearing construction and protective features make it a dependable choice for both external and internal installations.
16mm 4 Core SWA Cable Specifications :
| Approx overall diameter (approximate size) | 23.6mm |
| Approx weight per meter | 1.3 Kg |
| Armour / Protection | SWA (Single wire armour) |
| Bedding | PVC (Polyvinyl-Chloride) |
| BS Number | BS5467 |
| Colour | Black |
| Conductors | Plain annealed stranded copper |
| Core identification | 4 core (Brown, Black, Grey and Blue) |
| Current Rating | 94A |
| Insulation | XLPE (Cross linked polyethylene) |
| Product Code | 6944X SWA Cable 4 core 16mm |
| Sheath / Jacket | PVC (Polyvinyl-Chloride) |
| Standard | BS5467: Electric cables. Thermosetting insulated, armoured cables for voltages of 600/1000V and 1900/3300V |
| Voltage | 600 / 1000V |

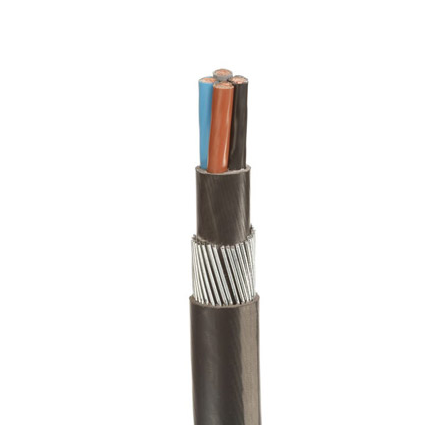

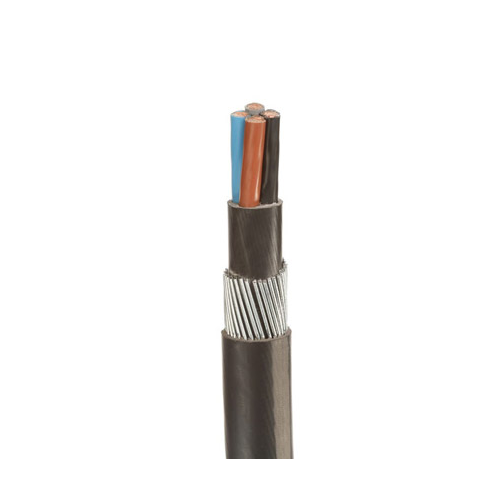

16mm 4 Core SWA Cable Construction :
Conductor: Class 2 Plain Stranded Copper (Cu) Conductor
Insulation: Cross-Linked Polyethylene (XLPE) is used as insulation in many power cables, due to its excellent electrical properties and water resistance. It also ensures that conductors and other metal substances do not come into contact with each other.
Bedding: Polyvinyl Chloride (PVC) is used as bedding to provide a protective boundary between inner and outer layers of the cable.
Armouring: Steel Wire Armour (SWA) used for mechanical protection. That way the cable can withstand higher stresses, be buried directly and used in external or underground projects.
Sheath: Polyvinyl Chloride (PVC) Sheath holds all the components together and provides additional protection from external damage.
16mm 4 Core SWA Cable Advantages :
When installing the 16mm 4 Core SWA Cable in public places such as medium schools, large hospitals, or plazas, it is essential to consider the safety aspect. In these scenarios, it is recommended to purchase the LSZF (Low Smoke Zero Halogen) 16mm 4 Core SWA Cable or the LSHF (Low Smoke Halogen Free) Cable. These cables have insulation materials that are low-pressure halogen-free and fireproof.
The LSHF 16mm 4 Core SWA Cable offers enhanced safety compared to standard cables. In the event of a fire hazard, these cables emit minimal smoke and do not release harmful halogen gases, reducing the risk to human health and property. This is why the LSHF 16mm 4 Core SWA Cable is priced higher than other cables, due to its advanced safety features.
It is important to conduct insulation flame retardant and fire resistance testing before burying the cable to ensure its performance in case of a fire incident. This testing helps verify that the cable's insulation can withstand fire and prevent the spread of flames.
By opting for LSHF or LSHF cables like the 16mm 4 Core SWA Cable, especially in public spaces, you prioritize safety and minimize the potential risks associated with fire hazards. The investment in these cables reflects a commitment to protecting people and property in case of emergencies.
Looking for a reliable 16mm 4 Core SWA Cable? Our selection offers durable construction, high-quality materials, and excellent performance. Choose from LSHF or LSHF options for enhanced safety. Ideal for a range of applications, including underground installations and power networks. Buy now for dependable and efficient 16mm 4 Core SWA Cables.
