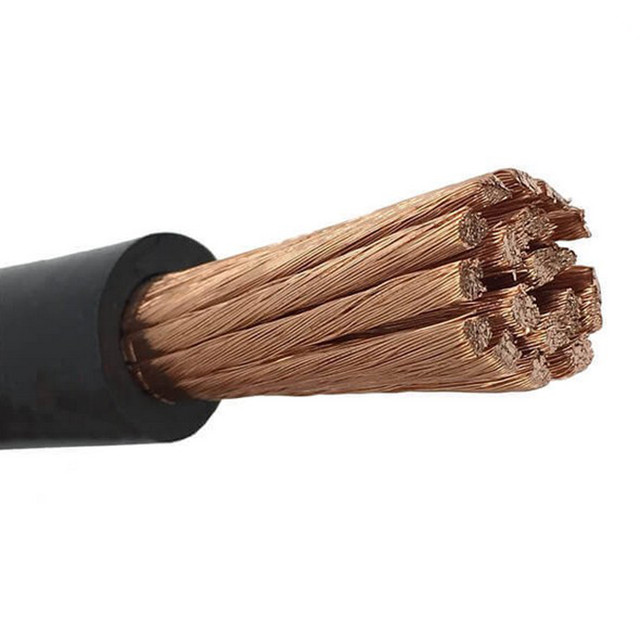

TPE/Rubber/EPR/CPE Superflex 16mm 25mm 35mm 50mm 95mm 70mm 400amp 500amp 600amp Copper 2/0 Welding Cable

Application

The Welding Cable can be used between electric welding generators and handheld electrodes and workpieces, and is suitable for the automotive industry, shipbuilding, transportation and conveying systems, machine tools, welding robots, ect. It remains flexible even under the influence of ozone, light, oxidation,protective gasses, oil and petroleum. Resistant to high and low temperatures and flames, can be used in open speces as well as in dry and humid environments.

Characteristics

Voltage Rating U/Uo

450/750V

Temperature Rating

Fixed: -30°C to +60°C

Fixed protected installations: +85°C

Flexed: -15°C to +60°C

Insulation tested to +90oC

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 6 x overall diameter
