WINCOO Tank Hydraulic Jacking System with 12T 25T 50T

Product Description

Min Order Quantity:1 Set

Supply Ability:100 Set/ Sets per Month

Port:SHANGHAI

Delivery Lead Time:30 days

Country/Region:United States

City:New York

Product Attributes

  • - Model Number +86 15358182650
  • - Place of Origin China
  • - Supply Type In-Stock Items
  • - Condition New
  • - Color Red
  • - Related Keywords hydraulic jacking system, hydraulic jack, hydraulic lifting machine

Description by Manufacturer

Advanced Three-Stage Hydraulic Jacking System
I. Product Description
Hydraulic jacking system is mainly used for inverted construction of vertical cylindrical steel storage tank (hydraulic jacking method) and inverted construction of vertical cylindrical low-temperature storage tank in petrochemical industry.It can also be used for vertical lifting and lifting of super large objects.


II. Product Main features
* The system consists of hydraulic pump station, cylinders, steel wire, and strokes. Easy to installation and operation;
* The system utilizes PLC central control to handle lift. Each power pack is equipped with auxiliary balance device to guarantee the precision of simultaneously lifting.
* Hydraulic lift pump station has subsidiary manual control and central control two operation models. The cylinder can be adjusted to lift separately or to lift with several others as one group, and multi groups can also be integrated to lift reach better precision and better welding effect.
* All the cylinders are with safety valve. It can be automatically locked to avoid cylinder/ tank dropping even under situation of power off, high-pressure hose broken, burst.
* The cylinder is with one high pressure hose to avoid oil leaking that usually happen by the traditional multiple hoses.Cylinder will return to initial condition by itself weight.
* Stroke of Hydraulic cylinder is 1475mm, which can satisfy each annular shell with 2630plate one-step lift. Greatly reduce the time waste.
* Hydraulic cylinder basic height is 2050mm, which can match automatic girth welding machine to proceed internal girth seam welding.
* Module configuration, the jacking system quantity can be adjusted as per different size of tank and weight
* High efficiency, each time lifting or falling down only needs around 15 minutes.
* Can well cooperate with our tank welding machines, which can greatly reduce the manpower cost and reduce the construction time.


III. Product Technical Parameter


YT10-1650

YT10-1700

YT12-2700

YT18-1700

YT25-3200

YT25-2700

YT30-2700

YT30-3200

YT40-3400

YT50-2700

Maximum service pressure

28 MPa

28 MPa

13Mpa

30Mpa

20Mpa

25Mpa

24Mpa

30Mpa

20Mpa

10Mpa

Maximum output force of single hydraulic cylinder

10 t

10 t

12 t

18 t

25 t

25 t

30 t

30 t

40 t

51 t

Maximum stroke of hydraulic cylinder

1700 mm

1700 mm

2700mm

1650mm

3200mm

2700mm

2700mm

3200mm

3400mm

2620mm

Hydraulic cylinder lifting speed

90mm/min

90mm/min

160mm/min

95mm/min

180mm/min

180mm/min

110mm/min

50mm/min

80mm/min

140mm/min

Oil pump flow

2×14.4L/min

2×14.4L/min

50L/min

7.2L/min

14.4L/min

14.4L/min

7.2L/min

7.2L/min

7.2L/min

14.6L/min

Motor speed

1440 r/min

1440 r/min

1440 r/min

1440 r/min

1440 r/min

1440 r/min

1440 r/min

1440 r/min

1440 r/min

1440 r/min

Motor voltage

~380V

~380V

~380V

~380V

~380V

~380V

~415V

~380V

~380V

~380V

Motor power

2×5.5KW

2×5.5KW

15kw

4kw

5.5kw

5.5kw

4kw

4kw

4kw

5.5kw

Operating voltage of electromagnetic reversing valve

~220V

~220V

~220V

~220V

~220V

~220V

~220V

~220V

~220V

~220V

Working environment temperature for equipment

-15~50 ºC

-15~50 ºC

10-50 ºC

10-50ºC

-10~60 ºC

10~50 ºC

-10~50 ºC

0~50 ºC

0~50 ºC

0~50 ºC

Suitable width

1500mm

1500mm

1500mm

1500mm

3000mm

2500mm

2500mm

2500mm

3050mm

2500mm

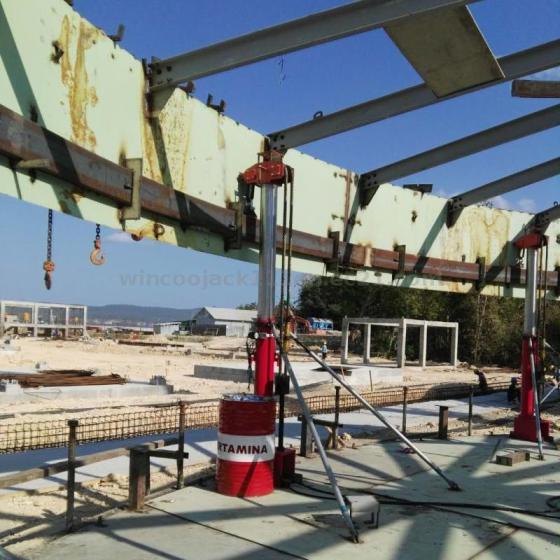

IV. Construction Site Photos

V. Company Profile

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.

Our Services & Strength

*We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
*Based client´s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
*To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.

FAQ

1. Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.

2. We can provide all technical documents and advices to support you for construction procedure clearifications

3. We can calculate the most suitable number of hydraulic jack according to the weight of the tank

4. We can provide your suitable hydraulic jack accessories with much more competetive price from our long time business partner if you need.

5. We can provide site people training service, and operation service or manpower service or as a subcontractor


Price

  • Price US$ 1200 / Set

Packaging & Shipping

  • - Delivery Lead Time30 days
  • - Minimum Order 1 Set
  • - Supply Ability100 Set/ Sets per Month
  • - Total quantity in Stock21 – 50
  • - Delivery PortSHANGHAI
  • - Shipping Career

Product Image
