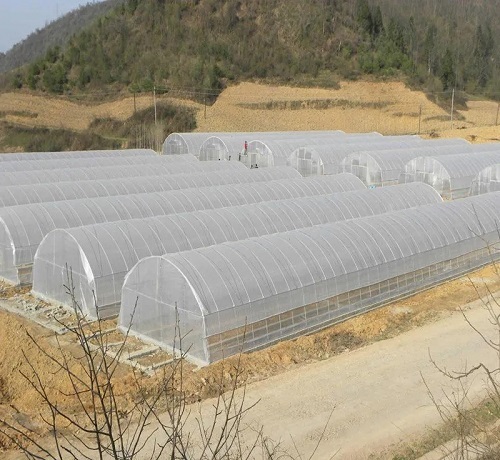

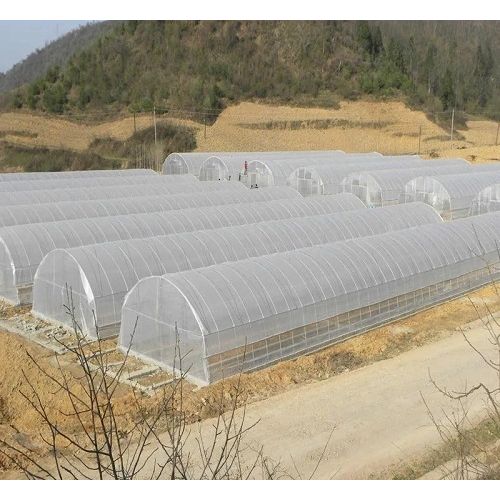

Tunnel greenhouse
Tunnel greenhouse
Product Description
tunnel greenhouse is simple greenhouse, usually which is coverd thin film 0.08-0.15mm
the tunnel greenhouse structure frame is usually arch pipe
usually the tunnel greenhouse is single span or single tunnel
usually it only has steel structure and film cover, but some people also install sunshade system, warming system, cooling system, irrigation system, lighting system and control system.
|
Covering material |
80-200 micro plastic film |
|
Width |
6m/8m/10m |
|
Length |
30-200m |
|
Wind Load |
0.35KN/m2 |
|
Snow Load |
0.25KN/m2 |
Kunsheng Tunnel greenhouse Features
1. Steel structure materila is high quality carbon steel which is accordance with national standad.Stee;l parts and fasteners are processed according to "GB/T1912-2002 Technical Requirements and Test Methods of Hot-galvanized Layer for Metal Coating Steel Production".Inside and outside hot galvanized steel should meet the national standard(GB/T3091-93)requirements of quality products.Galvanized layer should have thickness uniformity,no burr, and the galvanized layer thickness is not less than 60um.
2.CoveringMaterial The film cover use PE film or PO film. All the films have UV coating,and it has characteristic of anti-drip and anti-aging.
3. Cooling System
Include cooling fan and cooling pad. The cooling pad is installed on one side wall of the greenhouse, the exhaust fan the opposite
4. Irrigation system
Drop irrigation or spray irrigation, According to your requirements
5. Heating System
Boiler and water warming blower. The bolier type has gas boiler, coal boiler, oil boiler and biofule boiler, and gas/oil boiler.
