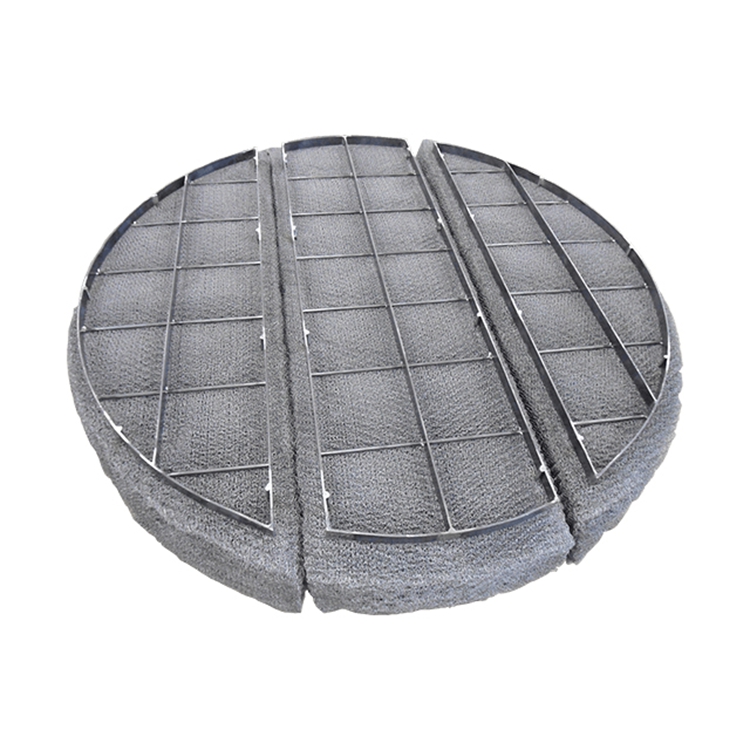

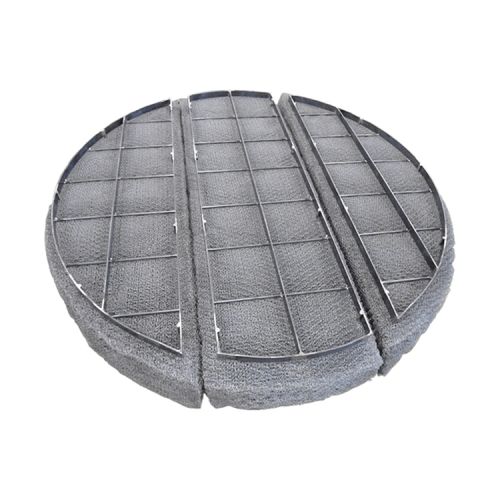

Wire Mesh Demister

A wire mesh demister, also known as a mist eliminator or a mesh pad, is a specialized device used in various industrial processes to separate and remove liquid droplets or mist from gas streams. It consists of a mesh pad made from woven or knitted wire that allows gas to pass through while capturing and coalescing small liquid particles.

Working principle

The working principle of a wire mesh demister involves the efficient separation of liquid droplets or mist from a gas stream. This process is achieved through the intricate design and mechanics of the wire mesh pad. Here's how the working principle of a wire mesh demister functions:

1. Gas-Liquid Contact: The gas stream, which contains suspended liquid droplets or mist, enters the wire mesh demister.

2. Wire Mesh Pad: Inside the demister, there is a mesh pad made from woven or knitted wires. This mesh pad is designed to have a complex structure with a large surface area, allowing gas to flow through while forcing liquid droplets to interact with the wire surfaces.

3. Coalescence: As the gas passes through the wire mesh pad, the liquid droplets in the gas stream come into contact with the wires. This contact causes the smaller liquid droplets to coalesce or combine into larger droplets.

4. Droplet Capture: The coalesced droplets become too heavy to remain suspended in the gas stream and are unable to pass through the wire mesh. Instead, they adhere to the wire surfaces.

5. Gravity Drainage: The larger droplets that adhere to the wire surfaces start to accumulate and grow in size. Under the influence of gravity, these droplets move down the wire surfaces of the mesh pad.

6. Droplet Removal: The accumulated droplets eventually become large enough to overcome surface tension forces and the drag exerted by the gas flow. They break free from the wire surfaces and drain down, collecting at the bottom of the demister.

7. Clean Gas Exit: The gas, now significantly cleared of liquid droplets, exits the wire mesh demister. The removal of liquid droplets enhances the quality of the gas stream, making it suitable for downstream processes or emission control.

1. Maintenance and Cleaning: Over time, the collected liquid droplets might accumulate at the bottom of the demister. Periodic maintenance involves draining or removing these collected liquids to ensure consistent demister performance.
