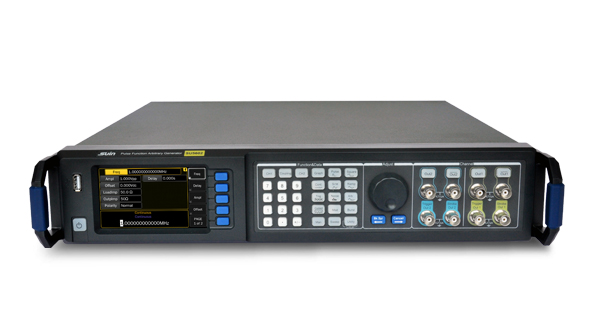

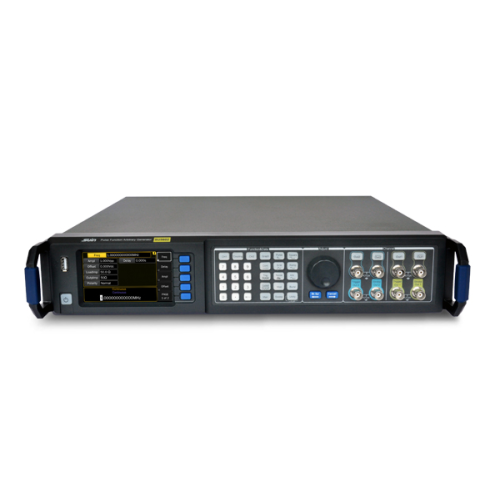

Pulse Function Arbitrary Waveform Generators
SU5600 Series-Pulse Function Arbitrary Waveform Generators have excellent specifications and powerful functional features, which can generate a variety of waveforms, frequency of pulse up to 120MHz and sine up to 240MHz.
Product Description
Overview
SU5600 Series-Pulse Function Arbitrary Waveform Generators have excellent specifications and powerful functional features, which can generate a variety of waveforms, frequency of pulse up to 120MHz and sine up to 240MHz. Pattern generator is also available for SU5601 and SU5602, can generate up to 120 Mbit/s ideal and arbitrary bit shape pattern.With many working modes: modulation, burst and sweep,you can quickly complete a variety of measurement work.
Product Model
SU5601/SU5602/SU5603/SU5604
SU5600 Series Pulse Function Arbitrary Waveform Generator Features
* 1 or 2 channel is selectable, differential outputs
* Pulse, sine, square, ramp, noise, arbitrary and pattern (optional) could be generated
* Noise, with selectable crest factor, and signal repetition time of 26 days
* 14-bit, 2GSa/s arbitrary waveform, 512k samples deep arbitrary waveform memory per channel
* FM, AM, PM, PWM, FSK modulation capabilities up to 10MHz
* Trigger, sweep and burst modes are supported.
* Pattern generator with 16Mbit memory is optional
* Communication interfaces USB Device, USB Host, LAN and GPIB are provided
SU5600 Series Pulse Function Arbitrary Waveform Generator Specifications
| Model | SU5601 | SU5602 | SU5603 | SU5604 | |
| Output | 1 | 2 | 1 | 2 | |
| Patter Generator | Yes | Yes | No | No | |
|
Pulse |
Frequency |
1μHz~120MHz |
|||
|
Resolution |
1μHz | ||||
|
Pulse Width |
4.1ns to (period - 4.1ns) typ. | ||||
|
Accuracy |
± 500ps ± 50ppm |
||||
|
Transition Time |
2.5ns~1000s (10%~90%) | ||||
|
Accuracy |
± 500ps（< 50ns, 1Vpp） | ||||
| Sine |
Frequency |
1μHz~240MHz |
|||
|
Resolution |
1μHz |
||||
|
Square |
Frequenc |
1μHz~120MHz |
|||
|
Duty Cycle |
0.1%~99.9% (limited by frequency setting) |
||||
|
Ramp |
Frequency |
1μHz~5MHz |
|||
|
Symmetry |
0.0%~100% |
||||
|
Noise |
Bandwidth |
120MHz typ. |
|||
|
Amplitude Distribution |
Selectable Gaussian, user defined | ||||
|
Crest factor (peak/RMS) selectable |
3.1, 4.8, 6.0, 7.0 typ. (Gaussian distribution) |
||||
|
Repetition Time |
26 days |
||||
|
Arbitrary |
DAC Sample Rate |
2GSa/s, Fixed |
|||
|
Length |
2~512k points |
||||
|
DAC Resolution |
14 bits |
||||
|
Frequency |
1μHz~120MHz |
||||
|
Resolution |
1μHz |
||||
|
PP Jitter |
1ns typ. |
||||
|
Modulation |
AM, FM, PM |
Carrier waveform: Sine, square, ramp, arbitrary Internal modulation: Sine, square, ramp (up,50%,down),noise, arbitrary Modulation frequency: 1mHz~10MHz |
|||
|
FSK |
Carrier waveform: Sine, square, ramp, arbitrary Internal modulation:50% square FSK rate: Internal: 1mHz~50MHz, External: DC~10MHz Frequency Range: 1mHz~240MHz |
||||
|
PWM |
Carrier waveform: Pulse Internal modulation: Sine, square, ramp(up,50%,down), noise, arbitrary Modulation frequency: Internal: 1mHz~10MHz, External: DC~10MHz, Offset: 0%~99.9% pulse width |
||||
|
Sweep |
Waveform |
Pulse, sine, square, ramp, triangle, arbitrary |
|||
|
Sweep time |
100μs~500s |
||||
|
Start/Stop frequency |
1μHz~240MHz (Max frequency depends on selected waveform) |
||||
|
Burst |
Waveform |
Pulse, sine, square, ramp, triangle, arbitrary |
|||
|
Frequency |
1μHz~120MHz |
||||
|
# of waveforms in a burst |
2~231-1 |
||||
|
Output |
Max frequency |
120MHz pulse/240MHz sine |
|||
|
Type |
Single-end or differential |
||||
|
Amplitude (50Ω~50Ω) |
50mVpp~10Vpp (<50MHz) 50mVpp~5Vpp (≤120MHz) 50mVpp~3Vpp (>120MHz) |
||||
|
DC offset accuracy |
Voltage (50Ω~50Ω) -10V~+10V typ. |
||||
|
Pattern Generator (Only for SU5601/ SU5602) |
Data rate |
1μbit/s~120Mbit/s |
|||
|
Pattern memory |
16Mbit |
||||
|
Number of levels |
2, 3 or 4 (user selectable) |
||||
|
Trigger modes |
Continuous, gated, one bit per trigger event, one sequence per trigger event |
||||
|
Pattern sources |
Internal: PRBS -7, 9, 11, 15, 23 and 31 User Defined External Input |
||||
|
Modulation |
AM, FM, PM |
||||
|
Arbitrary bit shape |
User-defined and predefined bit transitions with up to 64 arbitrary waveform points per bit transition |
||||
