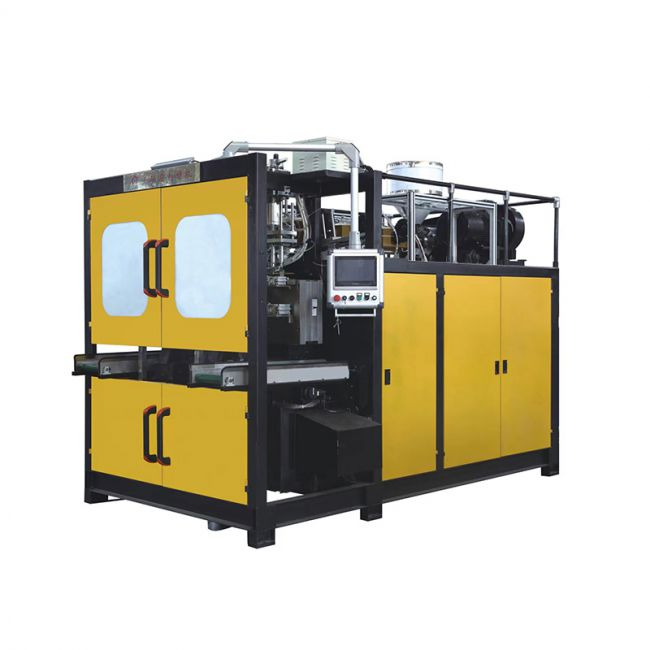

Plastic Extrusion Fully Automatic Electric Blow Molding Machine
Discover the efficiency and precision of our fully automatic electric blow molding machine. Crafted for seamless plastic bottle production, our fully automatic plastic bottle making machine ensures exceptional quality and reliability.
Product Description
Frequency conversion motor, hardened gear reducer and high-quality nitrogen cylinder screw step less speed regulation, high efficiency and energy saving, stable output.
The company's main products include blow molding machines, blowers, suction molding machines, and other intelligent equipment, which are widely used in food, beverage, daily chemical, pharmaceutical, and other industries. Youli has always adhered to the spirit of excellence in production and manufacturing, and through continuous improvement of product quality and production efficiency, it provides customers with high-quality products and excellent technical services.
3ML Plastic Extrusion Fully Automatic Electric Blow Molding Machine Advantage
- Die Head Mechanism
The split flow integrated die head is adopted, without material channeling, and the plasticization is more uniform. The inner wall is electroplated, without material accumulation, and the material embryo is smoother.
- Electric Control System
Mitsubishi human-machine interface is adopted, and all parameters can be set, modified and retrieved visually. Equipped with mitsubishi PLC control system, the system runs stably and accurately.
- Plasticizing System
Frequency conversion motor, hardened gear reducer and high-quality nitrogen cylinder screw, stepless speed regulation, high efficiency and energy saving, stable output.
- Automatic Trimming Device
supporting cutting device and bottom pulling device, fully automatic operation, labor saving.
- Pneumatic System
Taiwan Jinqi solenoid valve, Japanese SMC pneumatic components and high frequency wear-resistant cylinder are selected for stable operation and long service life.
- High Precision, Fast Speed
Servo fully electric opening and closing, beam arm, four points, mold moving mechanism, servo motor and roller screw. Ball type linear guide, high precision, fast speed.
- Applicable Raw Materials
Such as PE, PP. etc
- Supporting Device
Equipped with fast screen changing device.
Fully Automatic Electric Blow Molding Machine Details
Fully Automatic Plastic Bottle Making Machine Application
The YOULI Fully Automatic Plastic Bottle Making Machine serves the beverage, personal care, pharmaceutical, and household product industries. It ensures efficient production of high-quality bottles for water, carbonated drinks, cosmetics, pharmaceuticals, and household items. The machine's versatility accommodates different bottle sizes and designs, meeting industry standards and regulatory requirements.
Fully Automatic Moulding Machine Specifications
| Name | Unit | YL-5L |
| Max.product volume | ML | 3 |
| Dry cycle | PC/H | 400 |
| Number of mold head | 1-4 | |
| Screw diameter | MM | 60 |
| Screw L/D ratio | L/D | 25 |
| Screw drive power | KW | 11 |
| Screw heating capacity | KW | 10 |
| No. of heating zone | ZONE | 3-5 |
| Output of HDPE | KG/H | 65 |
| Servo motor power | KW | 9 |
| Clamping force | KN | 150 |
| Name | Unit | YL-3ML |
| Max. size of mold | MM | 280X350 |
| Template size | MM | 260X350 |
| Mold stroke | MM | 140-240 |
| Max. die diameter | MM | 20 |
| Blowing pressure | MPA | 0.6 |
| Air volume | m3/MIN | 0.4 |
| Cooling water pressure | MPA | 0.3 |
| Water consumption | L/MIN | 30 |
| Size of machine | LxWxH | 3.4X1.8X2.2 |
| Weight of machine | TON | 5 |
Are you searching for a state-of-the-art, high-performance machine to elevate your bottle manufacturing process? Look no further than the YOULI 3ML Plastic Extrusion Fully Automatic Electric Blow Molding Machine. With its advanced features and cutting-edge technology, this fully automatic electric blow molding machine is designed to deliver exceptional results and streamline your production with ease.
The YOULI 3ML Plastic Extrusion Fully Automatic Electric Blow Molding Machine is a game-changer in the bottle manufacturing industry. This advanced machine is fully automated, allowing for seamless operation and eliminating the need for extensive manual labor. With its electric-driven system, Pet Blowing Machine Fully Automatic ensures precise control and optimal efficiency throughout the production process.
As a fully automatic plastic bottle making machine, the YOULI 3ML Plastic Extrusion Machine offers unparalleled convenience and productivity. From the initial plastic material preparation to the final bottle ejection, this machine takes care of each step automatically, reducing human error and maximizing output. It is the perfect solution for achieving high-volume production with consistent quality.
The YOULI Fully Automatic Electric Blow Molding Machine combines cutting-edge technology with precise control, ensuring efficient and accurate bottle production. Its automated processes, including material feeding, heating, molding, and ejection, enable faster cycle times and minimize production downtime.
Fully Automatic Blowing Machine is designed for producing 3ML plastic bottles, catering to a wide range of applications across industries. Whether you need bottles for pharmaceuticals, cosmetics, or other liquid products, the YOULI Fully Automatic Plastic Bottle Making Machine can accommodate your specific requirements.
YOULI prioritizes user experience, and this machine is no exception. With its intuitive interface and user-friendly controls, operators can easily monitor and adjust the production parameters, ensuring optimal performance and reducing the learning curve.
The YOULI Fully Automatic Blow Molding Machine offers an excellent return on investment. Its efficient energy consumption, reduced labor requirements, and minimized waste contribute to lower production costs. The fully automatic blow molding machine price is competitive, making it an affordable choice for businesses seeking to enhance their bottle manufacturing capabilities.
Experience the Power of YOULI's Fully Automatic Electric Blow Molding Machine!
If you are looking to enhance your bottle production process, the YOULI 3ML Plastic Extrusion Fully Automatic Electric Blow Molding Machine is the ideal solution. Its advanced automation, efficiency, and precision ensure exceptional results and increased productivity.
To learn more about the features, specifications, and fully automatic blow molding machine price, visit our website now. Discover how YOULI's innovative technology can transform your bottle manufacturing process.
Empower your production with YOULI's expertise in fully automatic electric blow molding machines. Contact us today to take the first step toward revolutionizing your bottle manufacturing capabilities.
