coil processing

The Compact Coil Processing Line is a specialized coil processing and feed line that is designed to provide a compact and highly integrated production system for processing thin gauge metal coils.

Product Description

https://www.sz-sunrui.com/solution/compact-coil-processing-line.html

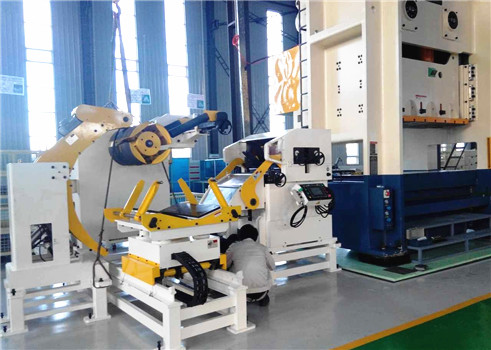

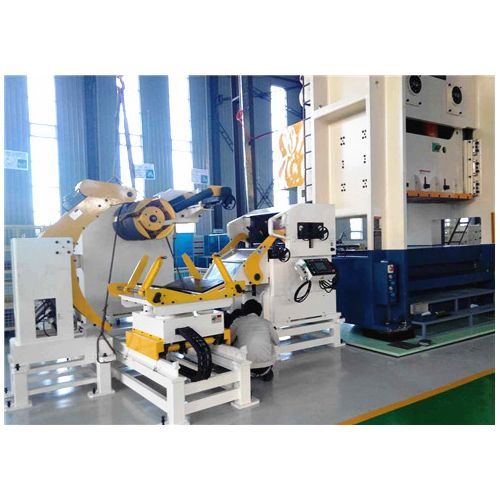

Compact Coil Processing Line

The Compact Coil Processing Line is a specialized coil processing and feed line that is designed to provide a compact and highly integrated production system for processing thin gauge metal coils. This system integrates various processing machines into a single, efficient, and space-saving production line. The Compact Coil Processing Line is widely used in the production of high-volume, thin gauge metal parts such as appliance components, automotive parts, and various other industries that require fast and efficient processing of metal coils.

Compact Coil Processing Line

Applicable material

Raw Material Type: Hot-Rolled Metal steel, Cold-Rolled Metal steel, Galvanized Metal steel, Stainless Steel etc.

Yield Strength: ≤400 N/mm2

Tensile Strength: ≤640 N/mm2

Coil Width: 100-1600 mm

Material Thickness: 0.3-3.2mm/0.4-4.5mm/0.6-6.0mm

Max. Coil Weight: 10ton

Feed Speed: 20m/min

Coil line configuration

Compact coil feed line MFL

Mechanical press machine APC/APM
