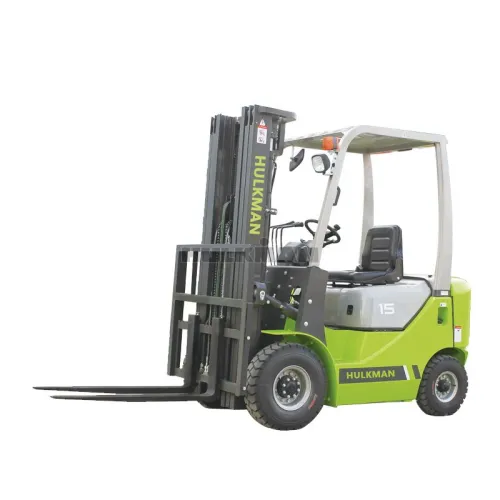

1.5Ton 1.8Ton Diesel Forklift

HULKMAN 1.5Ton 1.8Ton Diesel Forklift uses well-designed pipe and joint, which adapts each other and makes the hydraulic system stable and forklift durable.

Product Description

1.5Ton 1.8Ton Diesel Forklift Product Description

Standard Lifting Height: 3000mm

Standard Fork Length: 920mm

Standard Air Tires

LED Warning Light

OEM Brand Service

Optional Attachments: Fork Side Shifter, Paper Roll Clamp, Bale Clamp, Rotator etc.

1.5Ton 1.8Ton Diesel Forklift

HULKMAN 1.5Ton 1.8Ton Diesel Forklift uses well-designed pipe and joint, which adapts each other and makes the hydraulic system stable and forklift durable.

1.5Ton 1.8Ton Diesel Forklift

The HULKMAN forklift overhead guard is made by press welding, with 5 transparent plastic cover to make sure rainproof and good view.

1.5Ton 1.8Ton Diesel Forklift

This is HULKMAN forklift optimized operation lever layout, the new operation handle, and the spacious operating space, further enhance the forklift operation comfortable.

1.5Ton 1.8Ton Diesel Forklift

In HULKMAN forklift’s hydraulic pipeline, the rubber tube and the joint adopt the conical surface seal form, the sealing effect is good, the long-term use will not seep the oil.

1.5Ton 1.8Ton Diesel Forklift

HULKMAN forklift’s spacious upper and lower pedal and driving space can reduce leg operation fatigue.

1.5Ton 1.8Ton Diesel Forklift

The forklift design of the combined switch with the car’s double handle is simpler and more convenient.

1.5Ton 1.8Ton Diesel Forklift

HULKMAN forklift good design with buffer in lifting system will effectively reduce the vibration of mast.

1.5Ton 1.8Ton Diesel Forklift

A new muffler installation structure is adopted to reduce HULKMAN forklift vibration and noise of the whole vehicle.

Specification Parameters

Features		FD15	FD18
Power	/	Diesel Engine	Diesel Engine
Rated Capacity	kg	1500	1800
Center of Load	J(mm)	500	500
Lifting Height	h1(mm)	3000	3000
Free Lifting Height	h3(mm)	130	130
Fork Size LxWxH	L5xWxT(mm)	920x100x35	920x100x40
Tilt Forward/Backward	/	6/12	6/12
Min. Turning Radius	R1(mm)	2060	2060
Min. Right Angle Stacking Width	Ra(mm)	3780	3780
Min. Ground Clearance (Mast)	m(mm)	105	105
Overhead Guard Height	h4(mm)	2040	2040
Front Overhang	L3(mm)	400	400
Rear Overhang	L4(mm)	450	450
Performance
Max. Traveling Speed (Load)	km/h	14.5	14.5
Max. Lifting Speed (Load/Empty)	mm/s	460/500	460/500
Drawbar Pull/Gradeability	kN/%	16/20	16/20
Size
Overall Length with fork	L1(mm)	3170	3170
Overall Width	W1(mm)	1086	1086
Mast Lowered Height	h2(mm)	1990	1990
Mast Extended Height	mm	4025	4025
Chassis
Tire (Front)	/	6.5-10-10PR	6.5-10-10PR
Tire (Rear)	/	5.00-8-10PR	5.00-8-10PR
Wheelbase	L2(mm)	1400	1400
Tread Width (Front/Rear)	S/P(mm)	890/920	890/920
Curb Weight (None-Load)	kg	2680	2890
Engine
Battery (Voltage/Capacity)	V/Ah	12/90	12/90
Engine Model	/	Xinchai NC485BPG	Xinchai NC485BPG
Rated Power	kw	30	30
Rated Torque	kw	131	131
Displacement	L	2.27	2.27

Remark: Below HULKMAN 1.5Ton 1.8Ton Diesel Forklift 2D Graph for further reference.

1.5Ton 1.8Ton Diesel Forklift

Customized Lifting Height and Loading Capacity

Standard 2 Stage (Duplex) Mast

Lifting Height	Loading Capacity		Mast Lowered Height		Mast Tilt Angle
	1.5Ton Single Tire	1.8Ton Single Tire	1.5-1.8Ton Fork Landing	1.5-1.8Ton Height with Backrest	F/R
2000mm	1500kg	1800kg	1490mm	3025mm	6/12°
2500mm	1500kg	1800kg	1740mm	3525mm	6/12°
3000mm	1500kg	1800kg	1990mm	4025mm	6/12°
3300mm	1500kg	1800kg	2140mm	4325mm	6/12°
3500mm	1500kg	1800kg	2240mm	4525mm	6/12°
3700mm	1500kg	1800kg	2340mm	4725mm	6/12°
4000mm	1500kg	1800kg	2540mm	5025mm	6/12°
4500mm	1300kg	1400kg	2790mm	5525mm	6/6°*6/12°
5000mm	950/*1150kg	1150/*1350kg	2040mm	6025mm	6/6°*6/6°
5500mm	*1000kg	*1050kg	3340mm	6525mm	*3/6°
6000mm	*650kg	*850kg	3590mm	7025mm	*3/6°

Optional 2 Stage (Duplex) Full Free Mast

Lifting Height	Loading Capacity		Mast Lowered Height		Free Lifting Height	Mast Tilt Angle
	1.5Ton Single Tire	1.8Ton Single Tire	1.5-1.8Ton Fork Landing	1.5-1.8Ton Height with Backrest	1.5-1.8Ton Height with Backrest	F/R
2000mm	1500kg	1800kg	1490mm	3035mm	495mm	6/12°
2500mm	1500kg	1800kg	1740mm	3535mm	745mm	6/12°
3000mm	1500kg	1800kg	1990mm	4035mm	995mm	6/12°
3300mm	1500kg	1800kg	2140mm	4335mm	1145mm	6/12°
3500mm	1500kg	1800kg	2240mm	4535mm	1245mm	6/12°
3700mm	1500kg	1800kg	2340mm	4735mm	1345mm	6/12°
4000mm	1500kg	1800kg	2540mm	5035mm	1545mm	6/12°

Optional 3 Stage (Triplex) Full Free Mast

Lifting Height	Loading Capacity		Mast Lowered Height		Free Lifting Height	Mast Tilt Angle
	1.5Ton Single Tire	1.8Ton Single Tire	1.5-1.8Ton Fork Landing	1.5-1.8Ton Height with Backrest	1.5-1.8Ton Height with Backrest	F/R
3600mm	1500kg	1800kg	1725mm	4590mm	730mm	6/6°
4000mm	1300kg	1800kg	1860mm	4990mm	865mm	6/6°
4350mm	1200kg/*1300kg	1450kg	1975mm	5340mm	980mm	6/6°
4500mm	1200kg/*1250kg	1350kg	2025mm	5490mm	1030mm	6/6°
4800mm	1100kg/*1200kg	1250kg	2125mm	5790mm	1130mm	6/6°
5000mm	1000kg/*1100kg	1150kg	2195mm	5990mm	1200mm	6/6°
5500mm	*1000kg	*1000kg	2415mm	6490mm	1420mm	*3/6°
6000mm	*650kg	*850kg	2575mm	6990mm	1580mm	*3/6°

Remark: Not to take the largest rise in the shelf: 3T-3.5T -588mm.

Free lifting height of the shelf: 3T-3.5T +588mm.

*Means double tires

1.5Ton 1.8Ton Diesel Forklift

Optional Choices

Optional Configurations: windshield, 2/3 stage full free mast, double air filter, fork sleeve, double tires and extended devices, fir extinguishing muffler, solid tire, rotary work alarming light, fan, oil batch double air filter, purifying muffler, roof shield rain proof cover, LED lights, luxury seat.

Optional Attachments: side shifter, fork positioner, hinged fork, carpet boom, hook, extended fork, fork cover, lifting boom, paper roll clamp, bale clamp, highed cover, rotator, barrel clamp, loading stabilizer.
