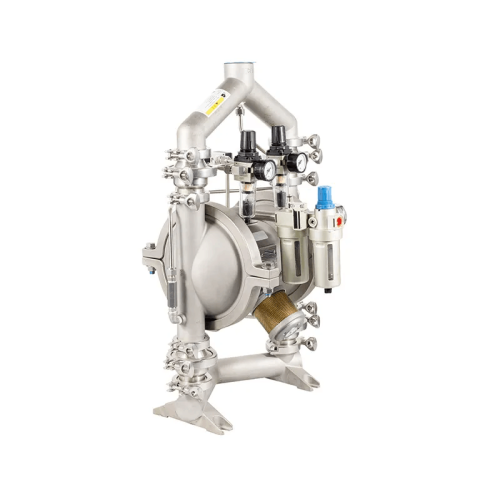

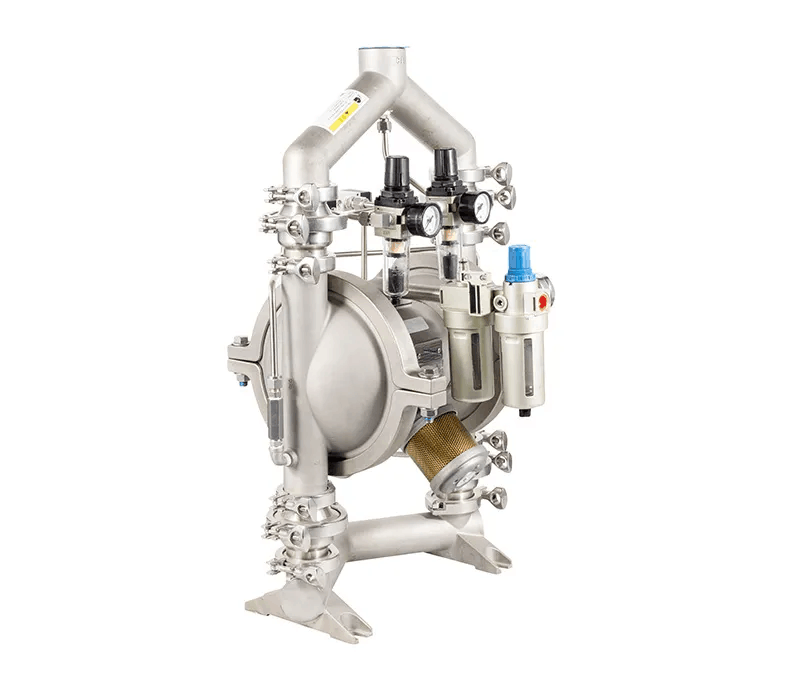

Understanding How a Pneumatic Pump Works

Product Description



https://www.gk-supply.com/news-blogs/understanding-how-a-pneumatic-pump-works.html

A pneumatic pump is a type of fluid displacement device that operates on the principles of compressed air to transfer fluids from one location to another. In this article, we will explore the mechanics and workings of a pneumatic pump, shedding light on its components, working process, and diverse applications.



Basic Components of a Pneumatic Pump

A typical pneumatic pump comprises the following basic components:



Air Compressor: The air compressor is responsible for generating compressed air that powers the pneumatic pump. It pressurizes the air and supplies it to the pump.



Pneumatic Pump Body: The pump body houses the fluid inlet and outlet ports, as well as the internal components responsible for fluid transfer.



Diaphragm or Piston: Pneumatic pumps use either a diaphragm or a piston as the moving element to displace the fluid.



Valves: Valves control the direction of fluid flow within the pump, ensuring that the fluid moves in the desired direction.

Working Process of a Pneumatic Pump

The working process of a pneumatic pump involves the following steps:



Compressed Air Input: Compressed air from the air compressor is directed into the pump body through an air inlet port.



Diaphragm or Piston Movement: The compressed air enters the pump's air chamber, causing the diaphragm or piston to move within the pump body.



Fluid Intake: As the diaphragm or piston moves, it creates a pressure differential within the pump, causing the fluid to be drawn in through the fluid inlet port and into the pump chamber.



Fluid Discharge: The fluid is then expelled from the pump chamber through the fluid outlet port, driven by the movement of the diaphragm or piston.



Valve Operation: Valves within the pump direct the flow of fluid, ensuring that it moves in the intended direction and preventing backflow.



Continuous Cycle: The process of fluid intake and discharge continues as long as the compressed air supply remains active, allowing for a continuous flow of fluid through the pump.



Applications of Pneumatic Pumps

Pneumatic pumps find applications in various industries and processes, including:



Chemical Processing: Pneumatic pumps are used to transfer chemicals and fluids in industrial chemical processes.



Food and Beverage: They are employed in the food and beverage industry for pumping liquid ingredients and processing fluids.



Pharmaceuticals: Pneumatic pumps are utilized for transferring pharmaceutical liquids and solutions.



Wastewater Treatment: They play a vital role in wastewater treatment plants for moving fluids during the treatment process.



Automotive: Pneumatic pumps are utilized in various automotive systems, including braking and suspension.



Advantages of Pneumatic Pumps

Pneumatic pumps offer several advantages, such as:



Simple and Reliable: Pneumatic pumps have a straightforward design with fewer moving parts, making them reliable and easy to maintain.



Safe to Use: They do not use electricity, reducing the risk of electrical hazards in certain environments.



Self-Priming: Pneumatic pumps can self-prime, meaning they can draw in fluid even if the pump is not initially filled with liquid.



High Flow Rates: They can achieve high flow rates, making them suitable for transferring large volumes of fluids quickly.



Conclusion

Pneumatic pumps are valuable tools that harness the power of compressed air to facilitate the transfer of fluids in a wide range of applications. Their simplicity, reliability, and efficiency make them indispensable in various industries, contributing to smooth and efficient fluid-handling processes.



For more information, please contact us. We will provide professional answers.
