Plano Convex Lens Concave Lens Meniscus Lens Achromatic Lens
Product Description
Min Order Quantity：5 Piece
Country/Region：China
City：Changchun
Product Attributes
- - Place of Origin China
- - Supply Type In-Stock Items
- - Condition New
- - Material Glass
- - Shape Spherical
- - Structure Double Convex
- - Usage Optical
- - Related Keywords Plano Convex Lens, Silicon Plano Convex Lens, CaF2 Plano Convex Lens, Dia.6mm
Description by Manufacturer
A plano-convex lens is a positive focal length lens with a plane on one side and a convex on the other. It is used to concentrate parallel light, or convert point light sources into parallel light. Widely used in telescope, microscope, sight, laser, optical fiber and other products.H-K9L (N-BK7) plano-convex lenses are often used to focus parallel light or collimating point light sources and have excellent transmittance from visible to near infrared (350-2000nm).H-k9L is an commonly used optical glass when you do not need the additional advantages of uv melting quartz .In the convergence of light, if the absolute magnification is lower than 0.2 or greater than 5, usually choose plano-convex lens.When the magnification is between 0.2 and 5, a double convex lens is more suitable.To reduce spherical aberration, parallel light should be incident on the surface during focusing.Sunday Optical Plano convex lens diameter range from 0.35mm to 600mm, Material can be optical glass, Quartz, Sapphire, CaF2, MgF2, Infrared glass such as ZnSe, CaF2, Ge, Si.
Specifications:Structure: Convex, Concave,Meniscus,Achromatic.Material: Optical Glass,BK7,H-K9L,UVFS,Germanium,Silicon,CaF2,MgF2,ZnSe,ZnS,Sapphire.Dia.0.35-700mmDia.Tol.+0.00/-0.01mmSurface Quality:10-5Surface Irregulatiry:λ/10 632.8nm or customer designThickness tolerance:+0/-0.02mmClear Aperture>90% of diameterChamfer:0.05-0.5mmCenteration<30 arcsecCoating:Single Mag2, Multiple Layers AR Coating A: 350-650nm B: 650-1050nm C: 1050-1585nm D: Customer Design
sales(at)sunday-optics.com www.sunday-optics.com Bess Zhang
Phone: +86 151 0445 2660 +86 187 4419 2450
Price
- Price US$ 2 / Piece

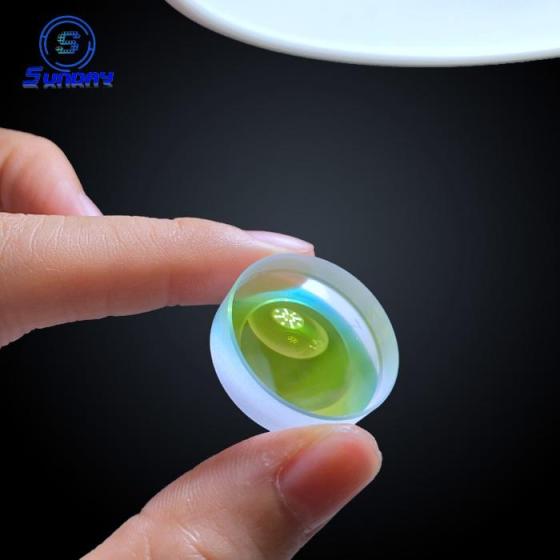

Product Image
