Product Description
Introduction of Fengwang PVC Hand Gloves Production Line's processes
Fengwang PVC Hand Gloves Production Line is Mainly Consist of 4 Parts:
1.Compounding equipments: including mixing machine, filter, vacuum di-bubble machine, latex conveying pump;
2.Dipping equipments: frame, chain, dipping tank, recycling device, dripping tank;
3.Plasticizing oven: Cooling, beading, Powder spreading, stripping;
4.Powder removing: Cooling sets, beading sets, powdering sets, stripping sets, powder removing.
First of all, for making PVC glove, Putting the main material and agents into the specific container and mixing them by certain ratio. The mixture will be sent to the dipping tank by the feeding pump after filter, vacuum machine, storage. Normally, hand mould will enter the dipping tank automatically. PVC Gloves making machine will rotating after dipping to even the latex sticking on the hand mould and let the extra latex dripping from the hand mould.
Extra latex will return to the dipping tank by passing the collecting tank. The temperature of oven will be at 230~250 degree. Under this condition, the latex will start shaping. The self-cooling, beading, powdering stages is coming after oven. The manual stripping stage will take the glove out from the hand mould. The product will be stored after powdering.
Dipping: Hand mould is dipping in the latex.
Beading；Applying adequate angle, the bead will appears at end of the glove.
Stripping: Manually take the glove from the hand mould.
Packing: packing after physical and appearance check.

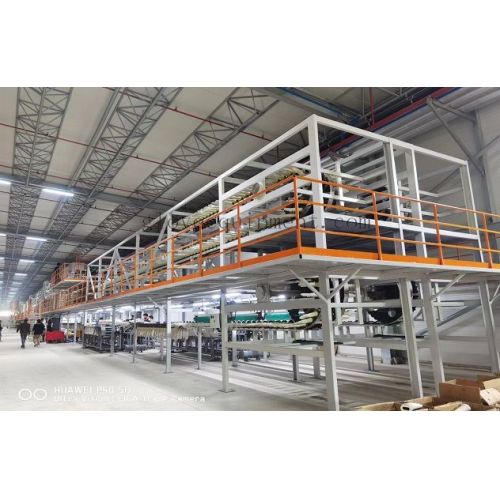

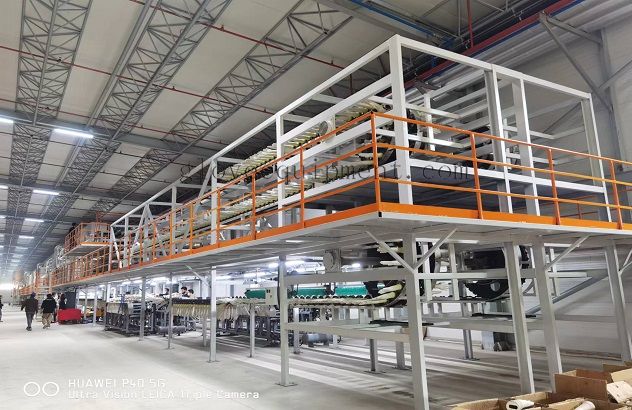

Household/Medical glove(full dipping) production line
This PVC Gloves making machine production line is applying the method of continuous production and direct-dipping method. The quality of the product is evenly and colour of it is splendid. Different sorts of products can be make at the same line simultaneously. Length of the line can be 60, 80, 100 meter. The pvc hand gloves production line is highly automatic and the capacity is also high. There is an option for customer for automatic stripping. The length of the line is also adjustable according to the customer conditions.
Characteristics Of PVC Hand Gloves Production Line:
1. PVC Gloves machine is well designed. It can be modified reasonable according to the shaping processes of different material( latex, nitrile, PVC,PC). Automatic refill system makes the quality stable and even-distribution. Also the advantages including: heat receiving is even, production rate is high, easy-stripping.
2. Heat recycling is the principle of the oven let the temperature inside the oven even. The insulation is well by good heat insulation material. In order to raise the heat efficiency, the auto-temperature control system alone with the control switch can guarantee the good product rate.
3. Special flexible piston-style connect device makes the soild connection and easy-changing of the hand mould.
PVC Hand Gloves Production Line Advantages:
1, Safety, to avoid the gear and chain exposed in outside
2, To reduce the oil leaking
3, More convenient to adjust the rubber roller
4, Low energy consumption after put into use; the box type design greatly reduces the maintenance rate
Parameters
Technical Specification for PVC Hand Gloves Production Line |
|
| Project | Specification(1 line) |
| Chain Length | 450M |
| Chain Pitch | P=100 |
| Number Of Hand Molds | 4500 |
| Hand Model Model | S、M、L、XL |
| Number Of Hand Molds | 4500 |
| Production Line Speed | 120-140 Branch/min |
| Temperature Applicable To Production Line | 220°-- 230° |
| Capacity | 1.054-123 million / 305 days(maintenance of production line for the remaining 60 days) |
| Voltage | 220V、380V |
| Power | 24KW |
| Boiler | 3.5 million kcal |
| Dop Electrostatic Recovery | 45KW |
| Ingredient Workshop | 88.5KW |
Employees Needed for a PVC Glove Production Line |
|
| Workshop | 1 workshop director, 4 security workers, 7 women workers |
| Laboratory | 4person |
| Ingredient Workshop | 2person |
| Other Staff | 2-4person |
Space Requirements |
|
| Production Workshop | production line 110 meters long, 120 * 8 * 9M(long * wide * high) |
| Ingredients | 8 * 5 * 8M(length * width * height) |
| Quality Room | 8 * 5 * 3.5 M(long * wide * high) |
| Hanging Room | 10 * 5 * 3.5 M(long * wide * high) |
| Raw Stock | 200 square metres, height: 5 metres |
| Laboratory | 8 * 6 * 3.5 M(long * wide * high) |
| Product Storehouse | 400 square meters, height 6 meters |
